Detector

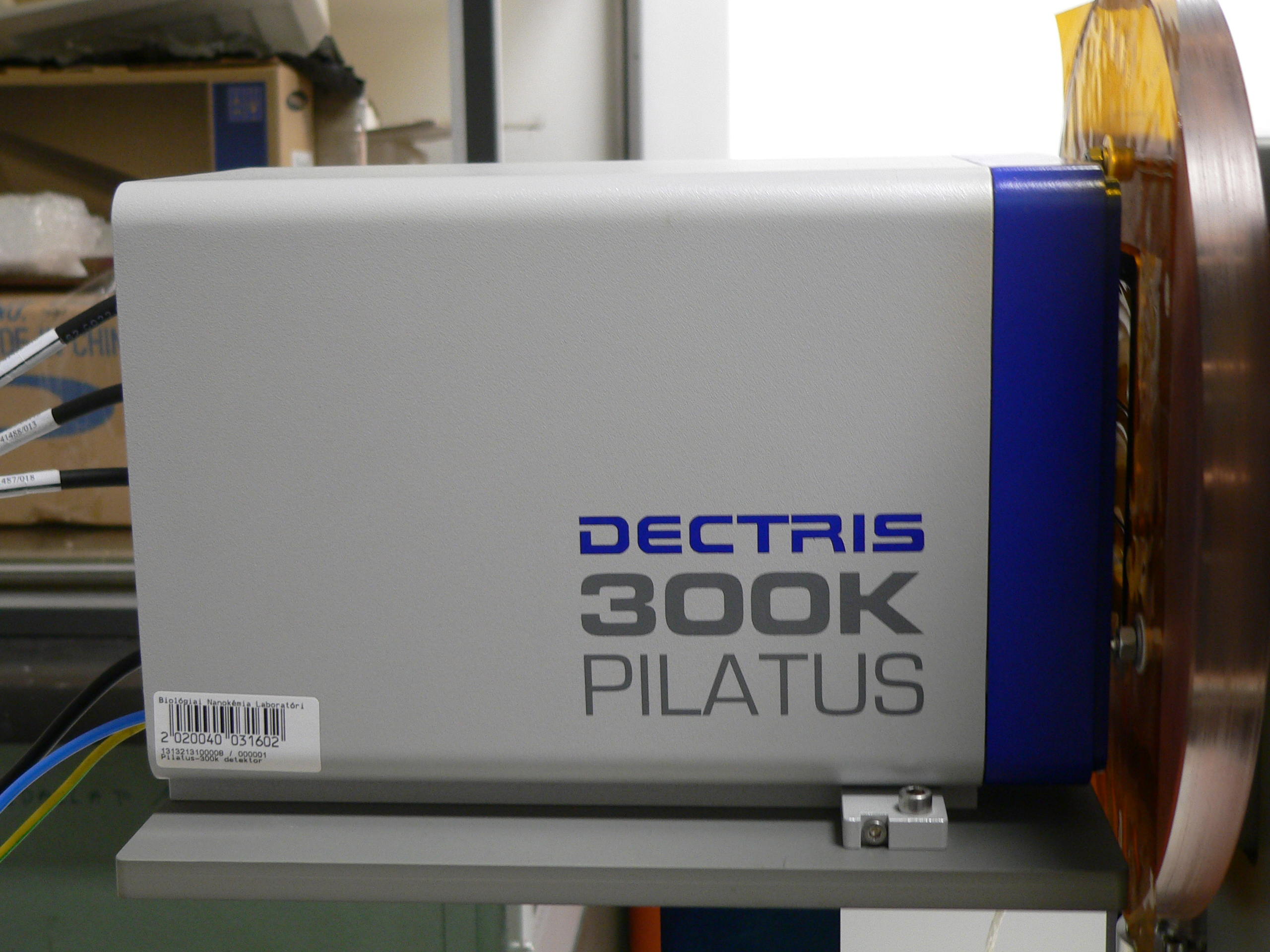

X-rays scattered by the sample are detected by a Pilatus-300k type hybrid pixel position sensitive detector (Dectris Ltd., Baden, Switzerland). Download original product flyer...
| Sensor | Reverse-biased silicion diode array, 450 µm thickness |
| Quantum efficiency | 96 % (8 keV X-rays) |
| Pixel size | 172 × 172 µm2 |
| Format | 487 × 619 = 301453 pixels |
| Sensitive area | 83.8 × 106.5 mm2 |
| Intermodule gap | 2 × 17 pixels |
| Dynamic range | 20 bits |
| Maximum counting rate per pixel | >2×106 photons / sec |
| Readout time | 2.3 ms |
| Point-spread function | < 1 pixel |
| Output data format | CBF, TIFF, EDF |
